5.8Ghz 1200mW FPV Video Transmitter 20km LOS Drone Wireless Video Transmitter

Name: 58Ghz 1200mW FPV Video Transmitter 20km LOS Drone Wireless Video Transmitter
Brand: Kimpok technology
Price: 1 USD

Quality 5.8Ghz 1200mW FPV Video Transmitter 20km LOS Drone Wireless Video Transmitter for sale

Brand Name : Kimpok technology

Model Number : KP-FPV5812

Certification : CE/FCC/ROHS

Place of Origin : China

MOQ : 1 set

Price : Negotiaiton

Payment Terms : T/T, Western Union,PayPal

Supply Ability : 3,000pcs per month

Delivery Time : 3-7 days

Packaging Details : export standard packing

Frequency : 5.8Ghz

Voltage : DC 12V

channels : 9 CHs

Current : 700mA

Transmit Power : 1200mW

Weight : 65g

Contact Now

5.8Ghz 1200mW FPV Video Transmitter 20km LOS Drone Wireless Video Transmitter

Description:

KP-FPV5812 wireless video transmission equipment is an excellent all aspects of performance are more varieties, and its large power margin, more suitable for complex physical environment.

It's not only a professional wireless CCTV transmitter and receiver for CCTV security projects but also used in the line of FPV system, UAV, RC airplanes/helicopters, Video and Data signals at the same time in cars of Unmanned Equipment.

Features:

Wireless transmission: no need to set up communications cable
Image, audio sync, color black and white compatible
Small size, light weight, easy to carry, good installation
Responsive, timely, send and receive real-time transmission
Using FM mode, anti-interference ability, good image quality
Highly integrated, stable and reliable transmission distance
DC power supply, easy to use.
Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.

Specification:

Voltage	DC 12V
Current	700mA
Frequency	5.8Ghz
Frequency Band	5.72 GHz, 5.74 GHz, 5.76 GHz, 5.78 GHz, 5.80 GHz, 5.82 GHz, 5.84 GHz, 5.86 GHz, 5.88 GHz
Number of channels	9CHs
Transmit Power	1200mW
Video Output	1 Vp-p(FM)
Audio Output	1 Vp-p(FM)
Audio Carrier Ware	5.5M 6.0M
Distance (Open environment)	1000m-2500m
Overall Configuration	Transmitter, receiver, AV cable, power supply, antenna
Temperature	-10℃ ~ +50℃
Transmitter Weight	65g
Receiver Weight	67g
Whole Set Weight	395g
Dimensions (L * W * H)	Transmitter: 703818.5mm. Receiver:724311mm
Box size (L * W * H)	24516065mm

Installing:

A. The line has 5 plugs for connecting transmitter, camera and power supply
One of the line's points connecting to transmitter, another has 4 plugs (red, yellow, white, black)
Red plug connect DC 12V/1000mA, can also connect battery
White and yellow plug connect to camera's audio and video apart
And black one connects camera's power input jack

B. Push the control button, can change the channel of receiver
Meanwhile, push it and last several seconds, can close the digital play and turn into saving power model
Then push it again, can replay
The function can be able to lock channel, so as to avoid mistaking operation

C. Set the same channel with transmitter and receiver

5.8Ghz 1200mW FPV Video Transmitter 20km LOS Drone Wireless Video Transmitter

5.8Ghz 1200mW FPV Video Transmitter 20km LOS Drone Wireless Video Transmitter

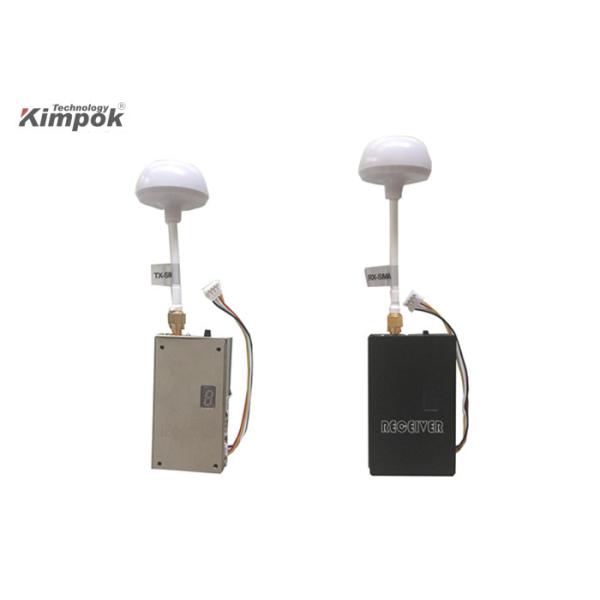

5.8Ghz 1200mW FPV Video Transmitter 20km LOS Drone Wireless Video Transmitter Images
